Description
The high-shear dispersing emulsifier is driven by a compact and compact series high-speed motor. The driving host adopts high-quality engineering plastic and die-cast aluminum alloy as the body, and the running state is stable; the working head is made of high-quality stainless steel. Control type: with speed memory, speed dynamic detection, overload protection and other functions. The speed can be set in advance and can be paused at any time, making the operation more convenient.

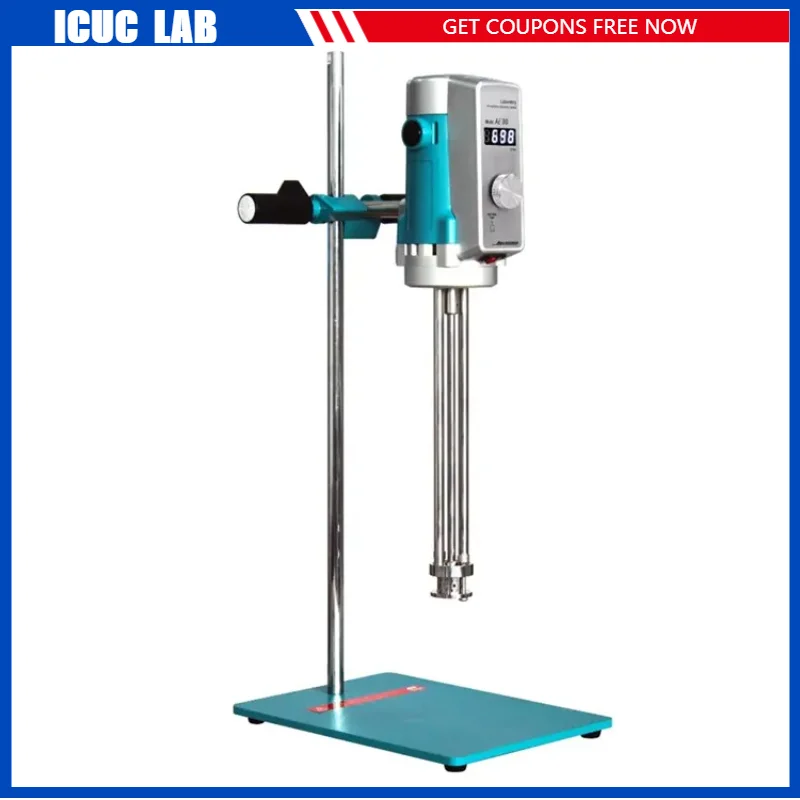

AE30 is designed for lab sample handling by emulsifying, homogenizing and dispersing, at small lab scale from 150ml to 30,000ml(H2O), suitable for pharmacy, food, cosmetics, biology, pigment, ink, pesticides etc.
Compared with previous models, AE30 has stronger power and higher torque, more suitable for high viscosity material. The compact structure allows small sample as less as 150ml.
Feature
1. With high speed motor, AE30 is quite suitable for liquid-liquid mixing/emulsion and solid-liquid emulsion/dispersing/suspension/crushing, especially for small volume and mushy samples;

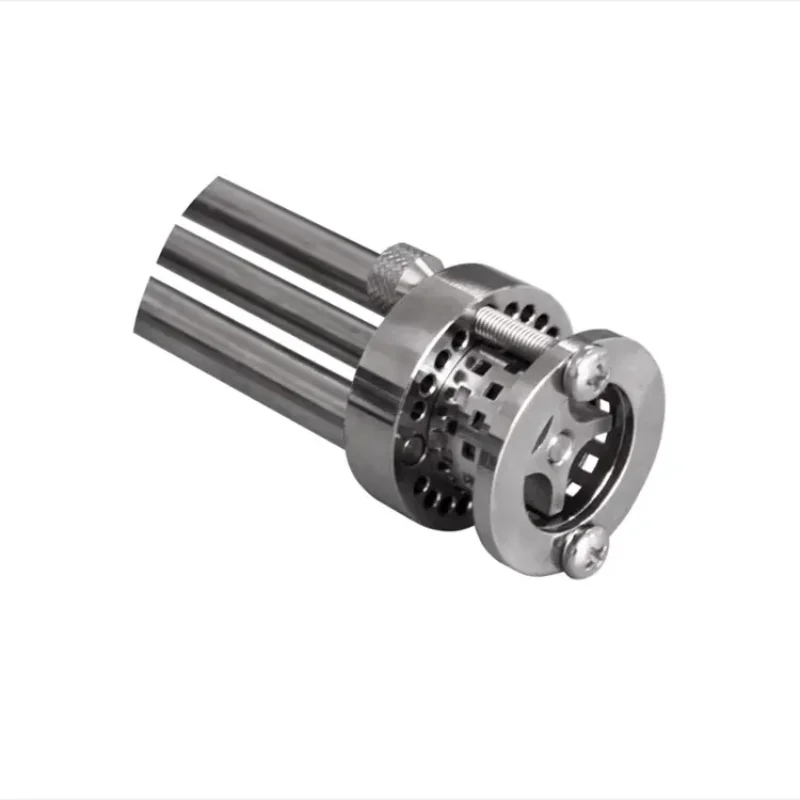

2. Whole working head is made of high quality SS316 at different replaceable hole sizes, ensure wide applications;
3. The integrated structure of driving output and working head positioning makes the running state more stable; the experimental application area is wide;
4. Operating speed microprocessor control, with instant compensation for speed changes caused by load changes and power supply fluctuations, constant speed and reliable;
5. Built-in soft start and automatic overload protection to ensure the safety of continuous operation at full load for a long time of the experiment;
6. The speed is steplessly adjusted to meet the test to modify the running speed at any time. The digital display speed is intuitive and the experimental data collection is convenient;
7. Run timing control to ensure that the experiment time is effectively controllable.
8. Easy to replace disassemble and install, easy to clean.
Specification
Model
AE30
Mixing capacity (H2O)
130ml~30000ml
Rated voltage
AC 220V ±10% (110Voptional)
Size of working head
Ø50mm
Rated frequency
50/ 60 Hz
Rotor size
Φ29mm
Input power
1350 W
Stator/rotor distance
0.5mm
Output power
800 W
Max. rotation speed
22.8m/s
Rated torque
51 N·cm
Min./max.immersion depth
38~260mm
Motor work mode
S1
Standard stator ring
4 hole shapes, replaceable
Control method
Combined control knob
Max viscosity
12,000 mPa.s
Speed range
2000~15000 rpm
Max temperaturefor working head
180℃
Speed control grade
Stepless, resolution 10rpm
pH range
2~13
Timing range
1~1000 min
Sterilization
Chemical way
Speed display
LED (number ×10)
Suspension particle size
15~65μm
Speed dynamic detection function
YES
Emulsion particle size
5~30μm
Speed memory function
YES
Permissible ambient temperature
Lower than 40ºC
Overload protection
YES
Permissible relative humidity
Less than 80%
IP Rating
IP20
Size of the mixer (T×B×H)
215×310×720 mm
The Material of the Operating head
SS316
Net weight
10KG
/>
/>
Model Number AE10 / AE30 (0.15 – 30L)
Origin Mainland China
Certification NONE
Classification Laboratory Thermostatic Devices
Mixer Type Emulsifier
Barrel Volume (L) 0.1 – 20 L
Material Processed Chemicals, Food, Medicine
Max. Loading Volume (L) 20 L
Range of Spindle Speed(r.p.m) 2000 – 14000 r.p.m
Weight (KG) 12 KG
Material SUS304, SUS304L, SUS316, SUS316L, SS304L/SS316L
Condition New
Product Type Cosmetic
Application Liquid, Medicine/Chemicals/Food/Cosmetics Processing
Additional Capabilities emulsifing / homogenise
Voltage 110v-220v
Dimension(L*W*H) 215*310*720mm
Power (W) 600W
Key Selling Points High Safety Level
Applicable Industries Hotels, Building Material, Manufacturing Plant, Food & Beverage Factor
Showroom Location Australia
Marketing Type Ordinary Product
Core Components Motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Bearing, Engine
Model AE series
Materia SS304/SS316L
Working volume 500ml~40L /800ml~60L
Display AE-H series come with digital display
Power Supply 220V/ 110V
Size of working head Dia 50mm /70mm /90mm
Speed control type Stepless
Mixer Name Laboratory High Shear Emulsifier
