Automatic Industrial Liquid Filling Machine Discharge Nozzle Filling Head with Anti-Drip Check Valve and Small Diameter Water Outlet – Buy Now

Description

In-stock filling valve Filling headStainless steel down spoutAnti-drip valve Injector spout Inner seal

Technical parameters：

Control mode：Double-acting freestyle

The line pressure：0-0.7Mpa

The control pressure：0.35-0.4Mpa

Valve body material：CF8OrCF8M（Stainless 304 or Stainless steel 316)

The sealing material：PTFE

Medium temperature：-10-120℃

The outlet seal：

1.The outer seal type：Tapping rod is inserted into the bottle，Discharge liquid in spraying state。

2.Sealed-type：Tapping rod can be inserted into the bottle lower or alignment bottle Discharge in DC cylindrical state。

3.Variable type：Within the seal Filling rod is made of coarse attenuate，Can be easily inserted into the small bottle mouth，DC State discharge。

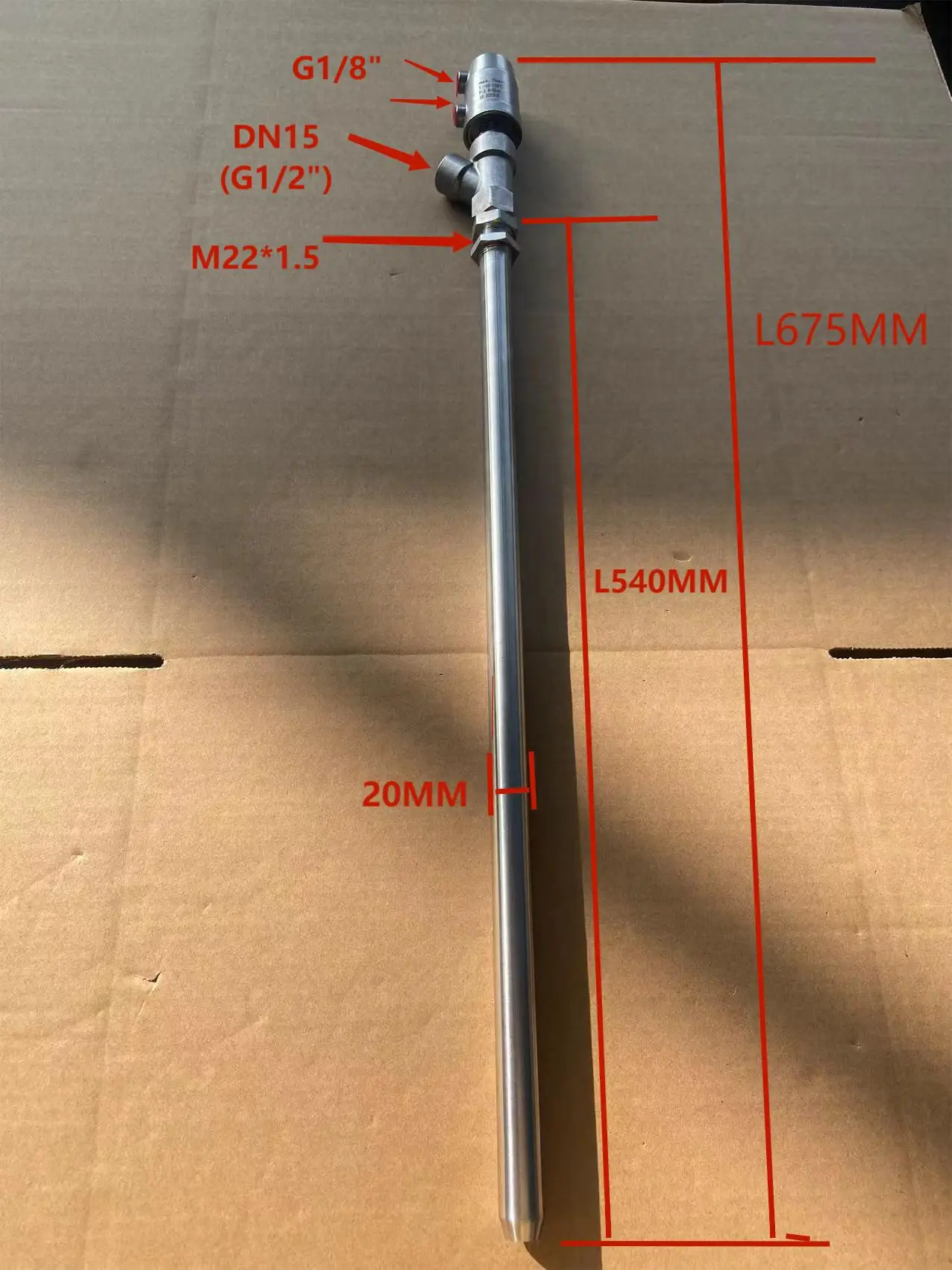

1.: DN15-27(10mm)L175MM,INSIDE SEALS

2: DN15-27(10mm)L500MM,INSIDE SEALS

3.DN15-27(10mm)L100MM,INSIDE SEALS

4.DN15-27(10mm)L110MM,INSIDE SEALS

5.DN15-27(10mm)L195MM,INSIDE SEALS

6.DN15-27(10mm)L200MM,INSIDE SEALS

7.DN15-27(10mm)L300MM,INSIDE SEALS

8.DN15-27(12MM)L130MM,INSIDE SEALS(FIX THREAD LENGTH 43MM)

9.DN15-27(12MM)L130MM,INSIDE SEALS(FIX PART WITHOUT THREAD)

10.DN15-27(18MM)L321MM ,INSIDE SEALS (FIX PART WITHOUT THREAD)

11.DN15-27(18MM)L151MM,INSIDE SEALS(FIX PART WITHOUT THREAD)

12.DN15-27(8MM)L70MM

12.CUTOMSIZED ,PLEASE COMMUNICATION WITH ME FOR DETAIL NEEDING

/>

/>

/>

/>

/>

/>

Model Number DN15(1/2″)

Type Valves

Origin Mainland China

Material Stainless steel

Control Pneumatic

Control pressure 0.35~0.4Mpa

Working pressure 0~0.7Mpa

Fluid Temperature -10~120℃

Additional information

Model Number	DN15(1/2")
Type	Valves
Origin	Mainland China
Material	Stainless steel
Control	Pneumatic
Control pressure	0.35~0.4Mpa
Working pressure	0~0.7Mpa
Fluid Temperature	-10~120℃
