Description

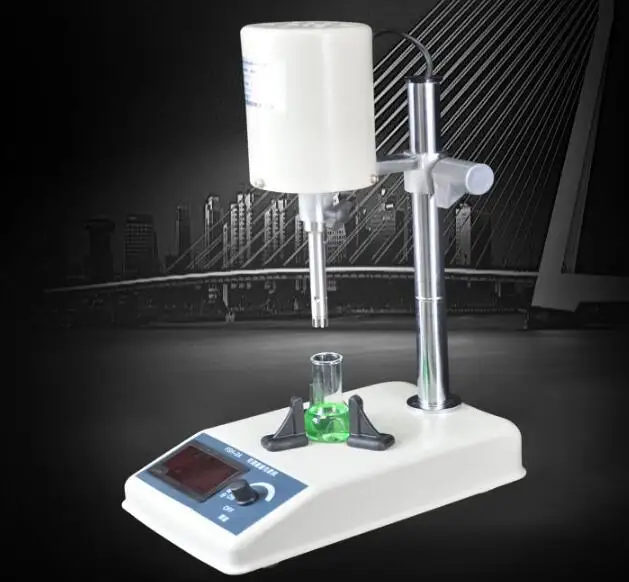

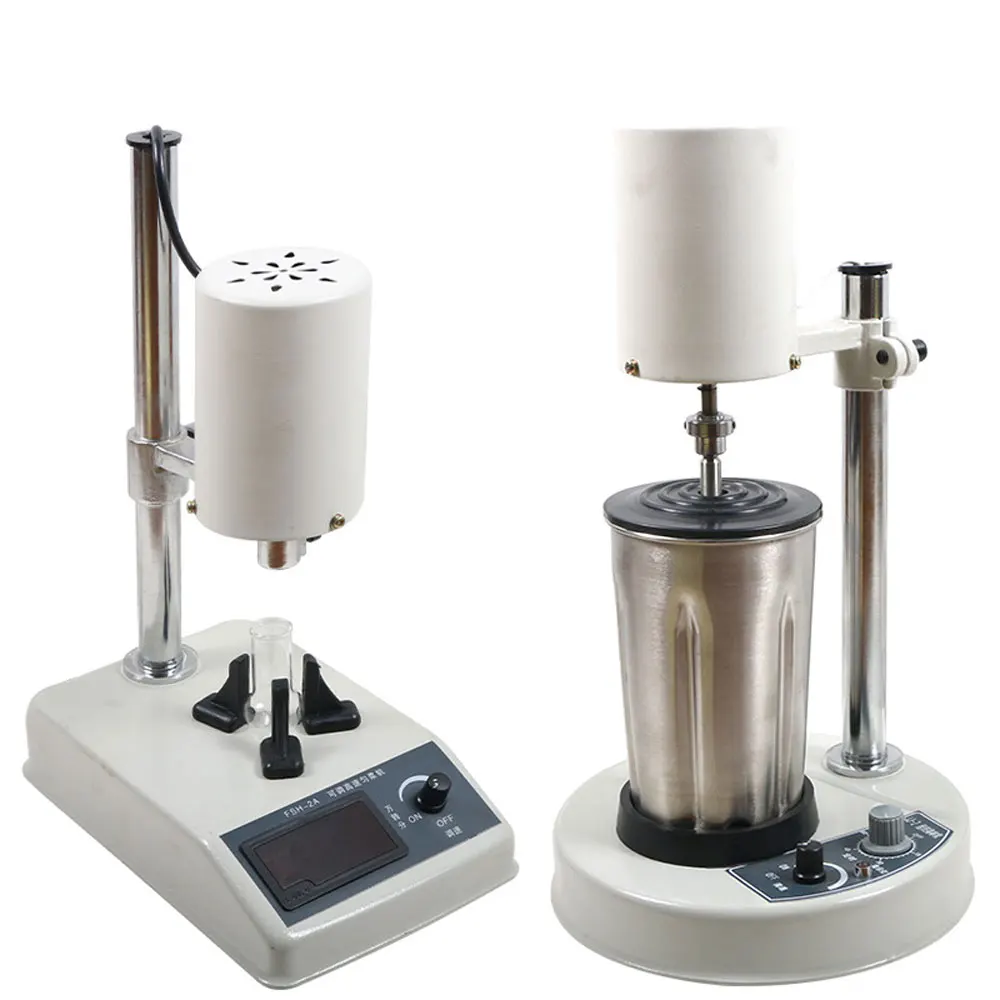

Adjustable Lab Homogenizer High Speed Dispersion Device Homogenization Machine FSH-2A/JJ-2 Tissue Masher, Disperser, Emulsifier
Technical parameters are as follows:
Model: FSH-2A
Maximum speed (RPM): Motor 25000; small homogenate knife 20000; large homogenate knife 18000
Homogenate cutter size: L122 * 11.5mm * L128 (small); 17.5mm (large)
Glass container capacity: 5ml, 10 ml, 15ml, 20ml
Continuous work: less than 5min
Power: 185W
Supply voltage: 220V +/- 10%50HZ

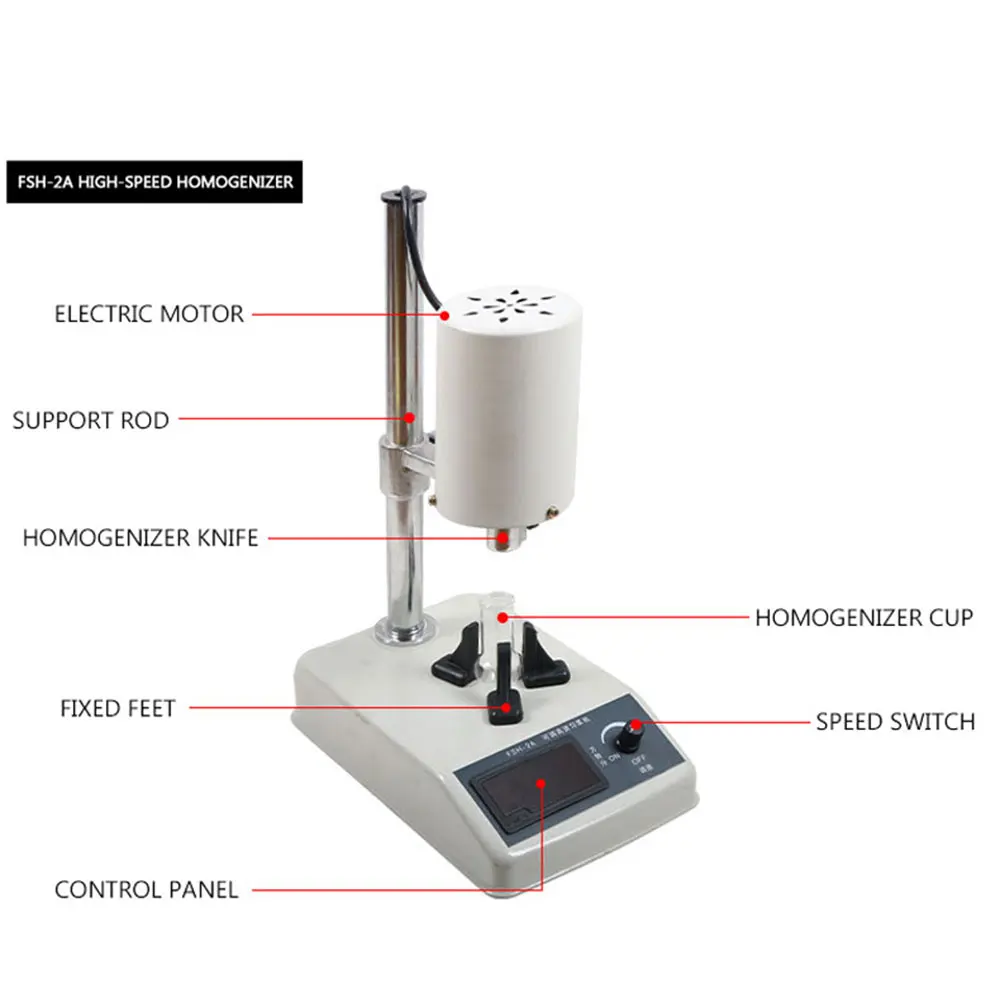

Structural characteristics of adjustable high speed:
1 high speed disperser called high speed homogenizer suction of homogenized structure, with high speed. For efficient homogenate between two immiscible liquid and trace organic compounds in water and emulsified fat soluble substances, extraction of organic solvent soluble substance
2 the tissues of all kinds of animals and plants can reach the purpose of homogenization and mixing.
3 can make the cell membrane rupture to nuclear separation, and can be used at different speeds to break the DNA
chain, or make large molecules to break into small molecules
4 low speed can be used as a blender.

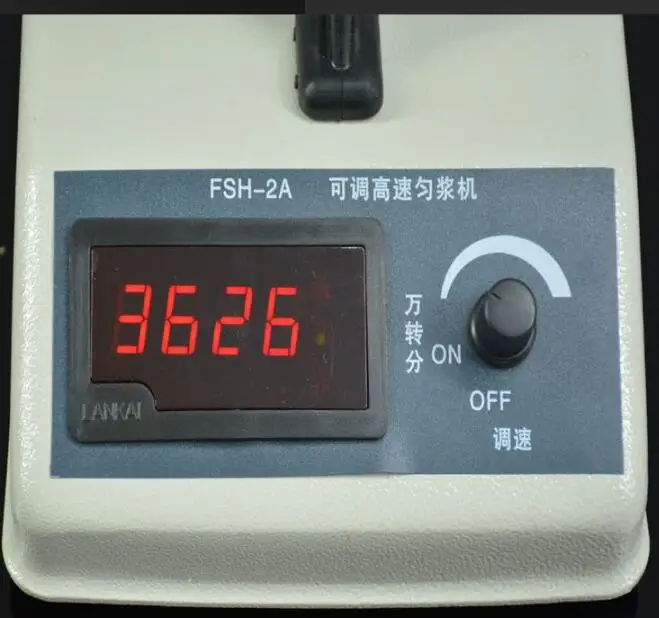

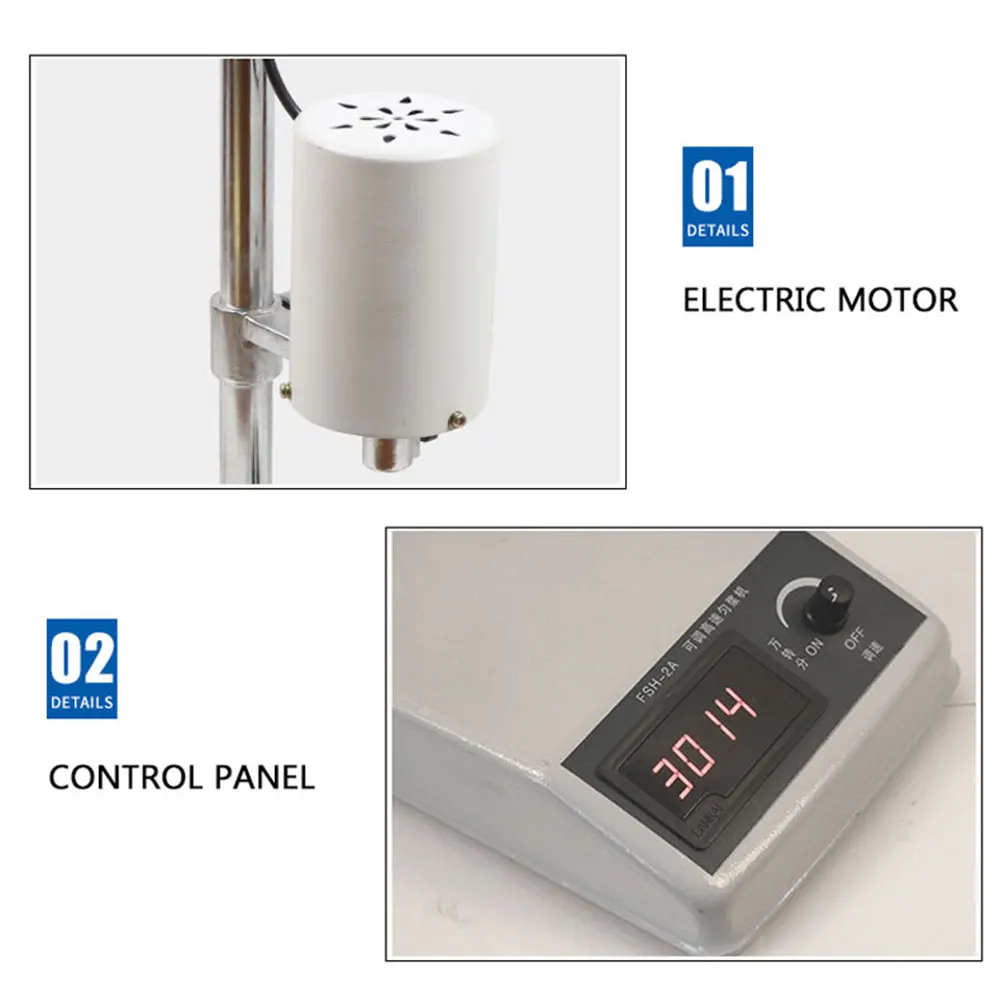

5 speed digital display, intuitive reading
Matters needing attention:
The instrument should be placed at the level of the work table, were required for the installation tool must be in place, power on the machine before using a water cup or vessel, the plum knife head submerged in the water, turn on the power switch, slow to fast speed adjustment knob, no obvious metal friction sound (such as metal friction sound, turn off the power, loosen the screw support tool 6M/M support, the external fixed sleeve on the random steering installation in place, tighten) after work. The need to experiment plants or microbes into small pieces or small pieces, placed in glass ware provided in the clip on the magnet support (Figure seven), loosen the fixed motor seat 8M/M screw, slowly at vessel mouth to move down, make the homogenate head from 2-3mm at the bottom of the vessel as well, and then tighten the screws 8M/M.
Usage homogenization
Power 185W
Model Number FSH-2A/JJ-2
DIY Supplies ELECTRICAL
Brand Name YunlinLi
Origin Mainland China
Certification CE
Power 185W
voltage 220V
Glass container capacity 5ml, 10 ml, 15ml, 20ml
Continuous work less than 5min
/>
/>
/>
/>
/>
/>
