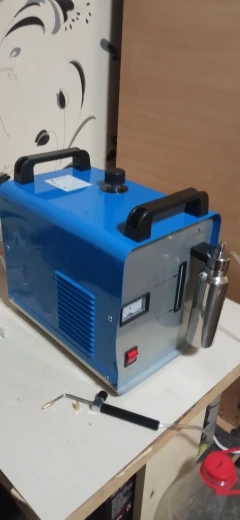

Name: H160 75L Oxygen Hydrogen Water Flame Torch Polisher HHO Acrylic Machine 220V/110V
SKU: 12000037100343633
Availability: InStock
Rating: 5.00 (2 reviews)

Description

H160 75L Oxygen Hydrogen Water Flame Torch Polisher HHO Acrylic Machine 220V/110V

Specifications

Model: H160A

Color: Blue

Material: Iron, Stainless Steel, PVC

Treatment: Paint Spraying

Product Type: Polishing Machine

Fuel: Water (Distilled Water and Pure Water)

Power Source: Corded Electric

Appicable Acrylic Plates Thickness: ＜5mm/0.2inch

Plug: UK Plug

Voltage: AC 220V (European Plug) / 110V (American Plug)

Note: We will send different plugs depending on the country. Please feel free to contact us if you have any other questions.

Gas Pressure: 0.08-0.13Mpa

Environment Temperature: -10-40°C/14-104°F

Flame Temperature: ≥ 2800℃/5072°F

Capacity: 1.6L/54.1Oz

Max. Gas Output: 75L/H, 2536Oz/H

Water Consumption: 0.015L/H, 0.5Oz/H

Water Volume: 1000ml/33.8Oz

Solution Density: 15%

Flame Gun No.: Single

Power Cord Length: 1.5m/4.9ft

Hose Length: 1.5m/4.9ft

Product Size: 45*28*36cm/18*11*14inch

Package Included

1* Polishing Machine

1* Flame Gun with 2 Tips

1* Power Cable

1* Hose

1* Funnel

1* English Manual

Description

If you are troubled by your machine that is too heavy, low-quality, and complicated to operate, then you should choose our polishing machine. It uses high-quality iron and stainless steel material with paint spraying treatment, which is durable. It has a 75L/H gas output and 2800℃ flame temperature that ensures a great polishing effect.

Key Features

Build to Last: It uses high-quality iron and stainless steel material with paint spraying treatment, making it anti-rust and strong. And the PVC hose resists high temperature and corrosion.

Large Operation Area: With a 4.9ft power cable and 4.9ft hose, you can use this polisher without worrying about the distance.

Powerful Polisher: With 75L/H gas output, it uses high-temperature and adjustable flame without carbon element to make acrylic edges smooth and bright and the workpiece welded tightly, offering you a significant polishing&welding effect.

Various Displays: The clear current display shows the current value and the liquid level display shows the water volume, bringing you much convenience when using it.

Good Heat Dissipation: It adopts a built-in cooling fan and thermal window design to help dissipate heat, reduce the surface temperature, and extend its service life.

Economical and Environmental-friendly: Taking water (distilled water and pure water) as fuel, which is obtained easily, this polishing machine is economical. Moreover, hydrogen and oxygen are odorless and non-toxic, and the combustion product is only water, which is environmental-friendly.

Safe&Energy-saving: It has a low working voltage and will cut off automatically beyond the set voltage. In addition, its electrolysis adopts series and parallel compound techniques and an efficient constant current switch, making this machine safe and energy-saving.

Easy to Operate: The red switch, complete accessories, clear marks, and English manual allow you to operate this machine easily.

Easy to Carry&Store: Its 14 lbs lightweight and compact size(18*11*14 inches) make this machine easy to carry and store. And the two handles on the machine top allow for easy carrying with a comfortable grip.

Protective Package: To prevent the product from being damaged and bumped during transportation, we packed it with foam to protect your products to the maximum extent possible.

Details

Gun Tips: The flame gun comes with 2 gun tips for easy replacement.

Funnel: The equipped funnel is a good tool to fill water without splashing.

Application

It can be used for heat treatment for metal parts, welding the hinges of spectacles rim, sealing the injection glass bottles, fusing the lead or tin alloy plates for storage batteries, cutting&fusing quartz or fine parts, peeling off FPC of computers, fusing LED chips & thermocouple, welding jewelry made of gold, silver, copper, lead, tin casting, etc. and polishing irregular acrylic surface.

How to Operate

1. Prepare 800 to 1000 ml of purified water.

2. Add the electrolytic powder(200-250g)into the purified water and stir it evenly (avoid skin contact with the electrolytic powder which is corrosive).

3. Add about one-third of the purified water to the pressure tank.

4. Connect the gas pipe to ignite and complete the installation.

Notes

1. Comes with an European Plug / American Plug, you don’t need to buy an adapter that suits voltage.

2. This package does not contain electrolytic powder. And the ratio of water and powder is: 4:1.

3. It is recommended to use industrial alcohol to filter the produced gas. If not, you can also use clean water instead.

4. It is suitable for polishing acrylic plates within 5mm. It can only polish the material which is made from Acrylic and can only melt small metal like needle tips.

5. When using this machine, please pay attention to the safety of electricity and take necessary protective measures. Please use a plug with ground wire. And it should be kept out of reach of children daily. Water is forbidden inside the machine because there are many electric parts.

6. Please do not wear loose clothing, scarves, ties, or hand jewelry when operating to avoid danger from being caught in moving or rotating parts.

7. The electrolytic solution is highly corrosive. Ignition is forbidden without pressure inside the machine.

8. Please do not open the shell before powering off.

9. Clean electrolytic cells every two months. Release the left gas after you shut down the machine.

10. Please read the English manual carefully before using it and keep the manual for reference.

11. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
