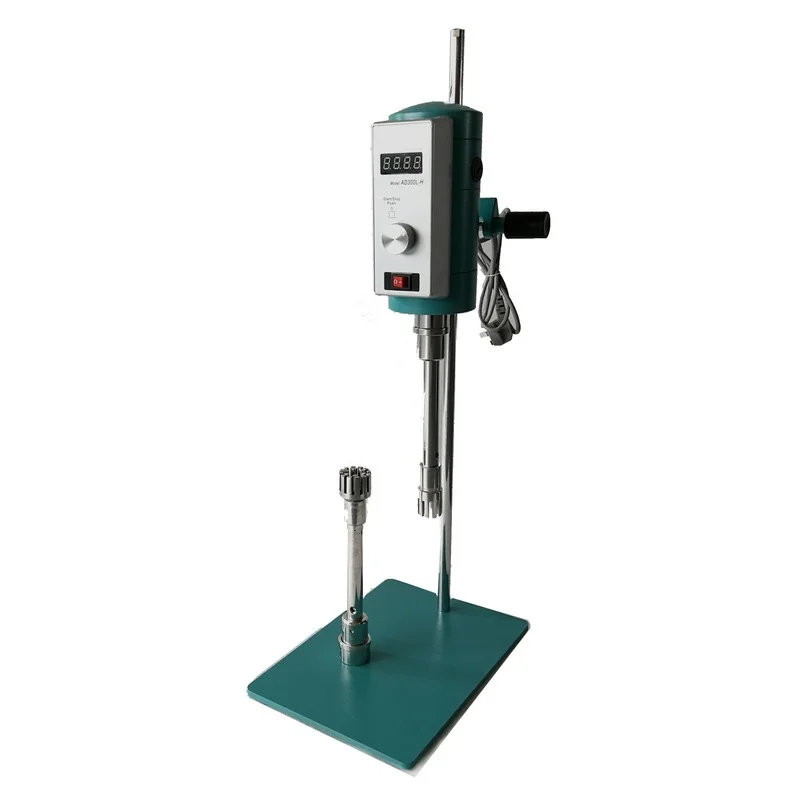

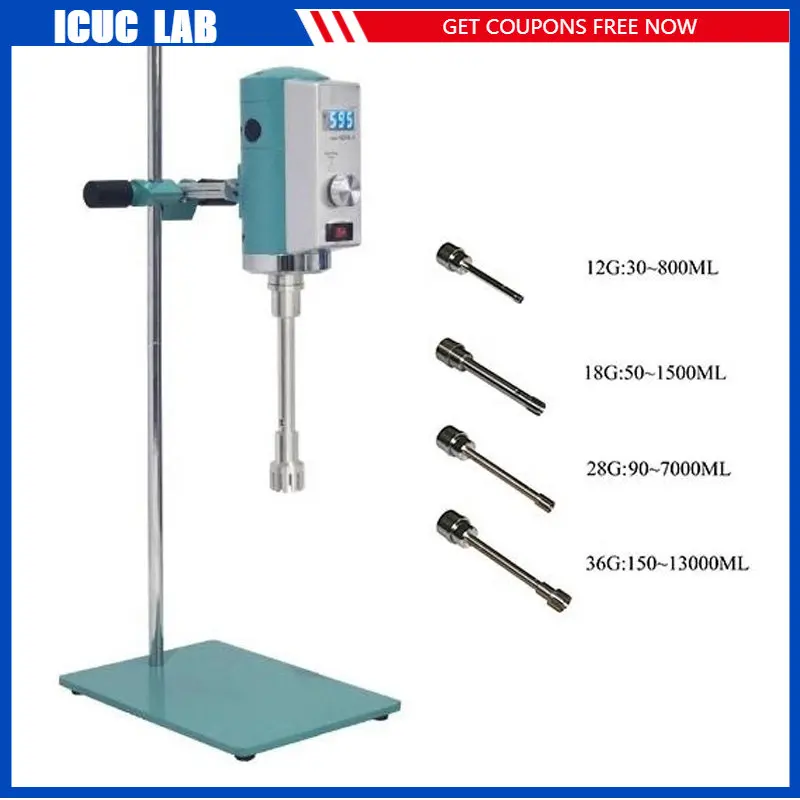

Laboratory Small Scale 30 – 13000ml Digital High Shear Disperser Emulsifier Homogenizer Mixer Machine AD300L-H

$779.70

buy product



Description

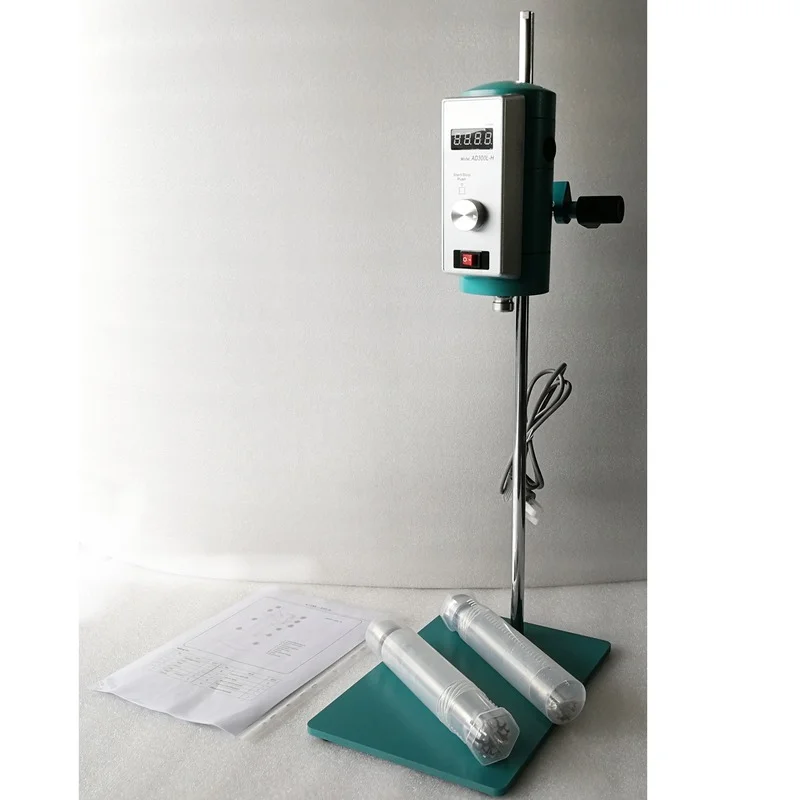

Q: What does full package include?

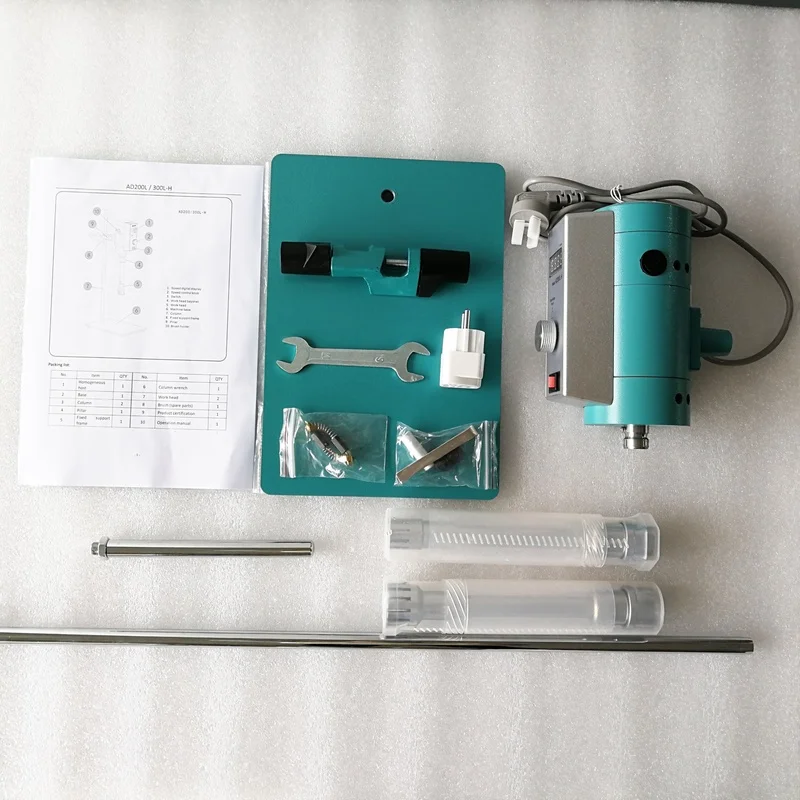

A: Full package includes ONE homogenizer driver with TWO sizes of shaft, Shaft size are depends on your choice:

Package-1: 12G & 18G

Package-2: 12G & 28G

Package-3: 18G & 36G

Package-4: 28G & 36G

If you prefer other match, please inquire us without hesitate.



Q:There are many models of homogenizer on your web, I do not know which model can meet my requirement best?

A: Please inform us your application, what material to handle, in high viscosity or low, handling volume, need display or not, etc. Then we will recommend a most suitable for you.



Q: What if I need to use under 110V voltage?

A: We can provide an optional voltage converter, suitable for 110V voltage.



Q: How long is the warranty?

A: 12 months.



For any other questions, please do not hesitate to contact us.



Introduction:

Adopts structure compact series-excited type miniature high speed motor drive for the Low to medium and High viscosity liquid mixing ,dispersing & Homogenizing materials in liquid medium.

Application:

The device can be applied to different areas like dispersing of tissue in biotechnology, sample preparation in medicine, cosmetic industry, paint industry, petro-chemical processing. It can also be applied to any liquid material experiment like liquid and liquid phase, Liquid and solid phase, Viscosity less than 0.2Pa.s, temperature below 80 ℃. The experimental medium can achieve a fine and delicate mixing by squeezing, strongly impacting and cracking, and liquid layers can be avoided during the operating.

Features:

1. High Shear Homogenizer has Various of agitators(working heads) are designed for different processing capacity and difference experiment requirement, include Crushing, emulsifying, homogenizing, polymerization, suspension, dissolving and Mixing etc. Especially for high viscosity material.

2. And it is easy to operate and easy to clean, easy to maintenance .

3. Variable Rating Speed Control provide with a high effect.

Models with “H” are digital display. Speed controller adopts IC constant speed control, can instantly to compensate for speed change of the load changes and power supply voltage fluctuation

Specification:

Model

AD300L-H

Working head

12G/18G/28G/36G

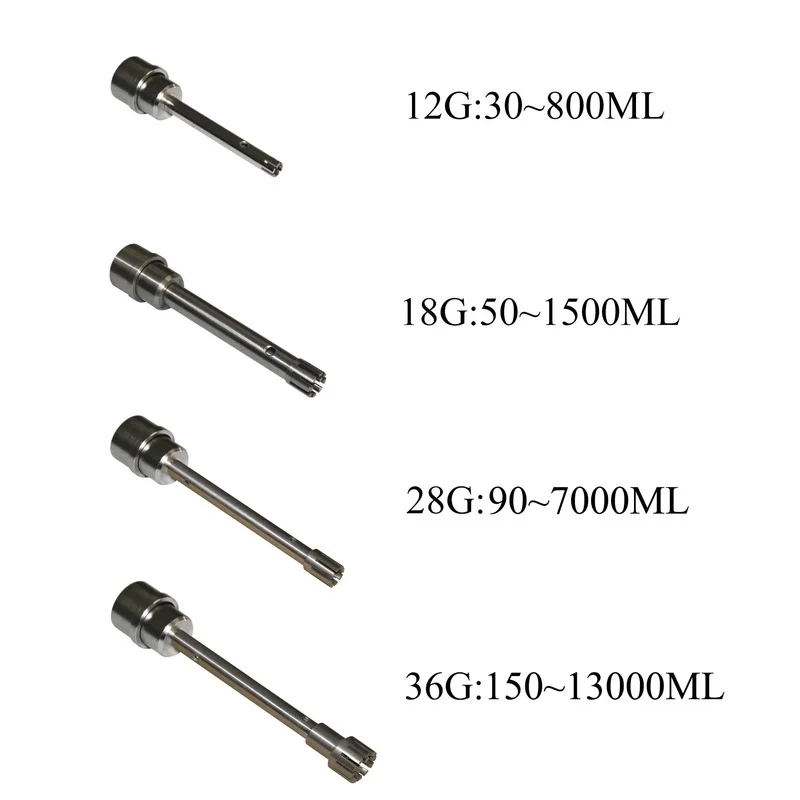

Mixing capacity (H2O,ml)

12G: 30~800ml

18G: 50~1500ml

28G: 90~7000ml

36G: 150~13000ml

Rated voltage

220V±10% V,  (Optional 110V±10% , With a voltage adapter)

Rated frequency

50/ 60 Hz

Input power

510 W

Output power

300 W

Rated torque

13.6 N·cm

Working mode

S1

Speed control

Continuously Adjustable

Speed range

2000~18000 rpm

Overload protection

Yes

Dynamical Speed recording

Yes

Speed display

Yes

Timing

Yes, 1-1000min

The Material of the Operating head

Stainless steel 304

Size of the mixer (T×B×H)

215×310×720 mm

Permissible ambient temperature

Lower than 40ºC

Permissible relative humidity

Less than 80%

Net weight

10KG



/>

/>

/>

/>

/>

/>

/>

/>

/>

Model Number AD300L-H

Origin Mainland China

Certification NONE

Classification Laboratory Thermostatic Devices

Classification Other

Place of Origin China

Capacity of 28G(H2O) 90~7000ml

Capacity of 36G(H2O) 150~13000ml

Range of Speed 2000-18000 rpm

Speed display Display value*10 rpm

Output Power 300W

Timing range 1~1000min

Overload protection Yes

Dynamical Speed recording Yes

Material of working shaft SS304

Net Weight 10KG

Additional information

Model Number

AD300L-H

Origin

Mainland China

Certification

NONE

Classification

Other

Place of Origin

China

Capacity of 28G(H2O)

90~7000ml

Capacity of 36G(H2O)

150~13000ml

Range of Speed

2000-18000 rpm

Speed display

Display value*10 rpm

Output Power

300W

Timing range

1~1000min

Overload protection

Yes

Dynamical Speed recording

Yes

Material of working shaft

SS304

Net Weight

10KG
